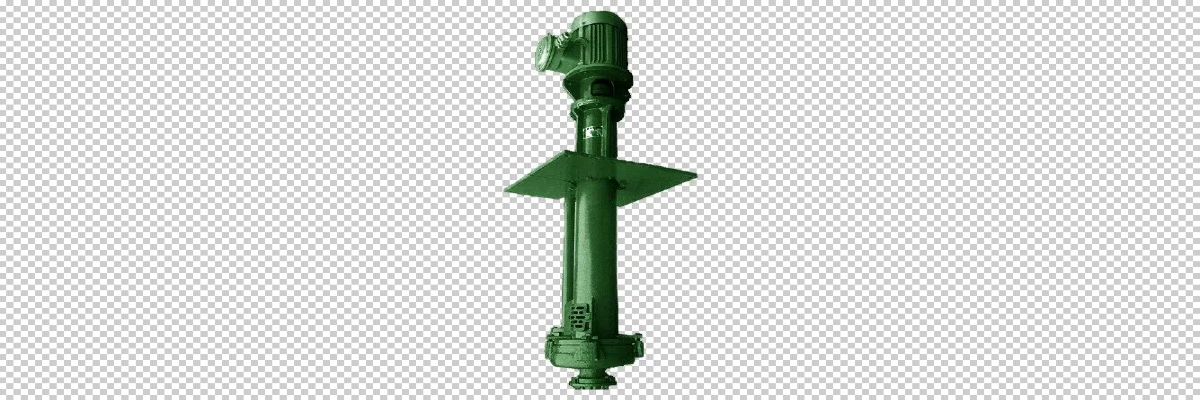

Submersible slurry pump is a sort of pump which designed special for transporting abrasive and corrosive slurry contains solid particles, it can be widely used in mining, metallurgy, coal, power, and building materials industries.
Submersible Slurry Pump Parameter Table
Technical specifications of JKZ submersible slurry pumps
| Model | Flow Rate (m³/h) | Head (m) | Speed (r/min) | Power (kw) |
|---|---|---|---|---|
| JKZ50YZ20-18 | 20 | 19 | 1450 | 3 |
| JKZ50YZ40-10 | 40 | 10.5 | 1450 | 4 |
| JKZ50YZ50-12 | 60 | 10.5 | 1450 | 5.5 |
| JKZ80YZ50-20 | 60 | 18 | 1450 | 7.5 |
| JKZ80YZ80-20B | 80 | 13 | 1450 | 7.5 |
| JKZ80YZ80-20A | 90 | 15 | 1450 | 11 |
| JKZ100YZ100-30 | 100 | 31 | 1450 | 22 |
| JKZ100YZ100-30A | 110 | 25 | 1450 | 18.5 |
| JKZ100YZ160-38B | 160 | 26 | 1450 | 30 |
| JKZ150YZ250-40B | 240 | 26 | 1450 | 37 |
| JKZ150YZ250-40A | 270 | 30 | 1450 | 45 |
Functions of Submersible Slurry Pumps
- Convey abrasive slurries containing solid particles
- Handle high-concentration, high-viscosity solid-liquid mixtures
- Provide reliable conveying capacity under harsh working conditions
- Reduce equipment wear and extend service life
- Improve production efficiency and reduce operating costs
- Adapt to various complex working conditions and medium characteristics
Types of Submersible Slurry Pumps
- Vertical submersible slurry pumps
- Horizontal submersible slurry pumps
- Single-stage submersible slurry pumps
- Multi-stage submersible slurry pumps
- Wear-resistant submersible slurry pumps
- Corrosion-resistant submersible slurry pumps
- High-head submersible slurry pumps
- Large-flow submersible slurry pumps
Application Industries
- Mining industry: Tailings transportation in concentrators, concentrate transportation
- Coal industry: Coal slurry water treatment, medium transportation in coal preparation plants
- Power industry: Ash and slag transportation in thermal power plants
- Metallurgical industry: Slurry transportation in smelters, slag treatment
- Building materials industry: Slurry transportation in cement plants, ceramic raw material processing
- Chemical industry: Chemical raw material transportation, waste treatment
- Environmental protection industry: Sludge transportation in sewage treatment plants
- Dredging industry: River dredging, port dredging
