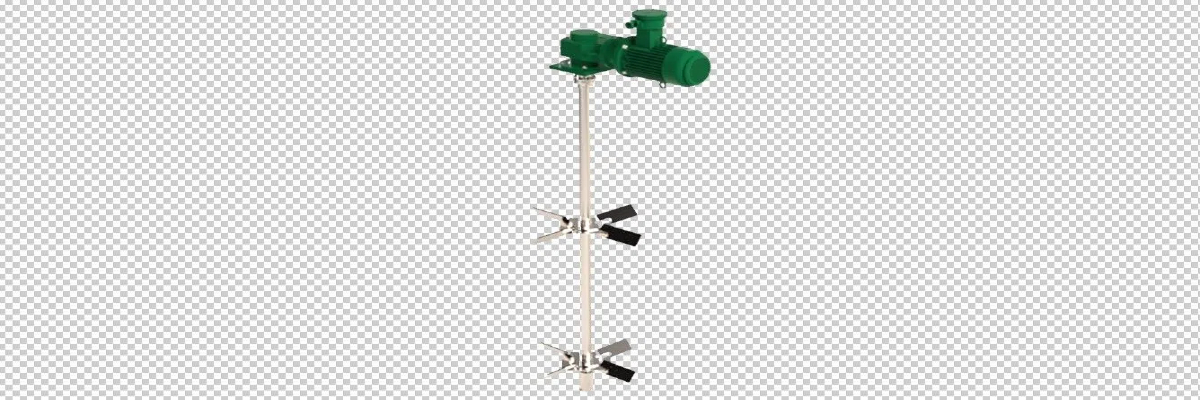

Mud Agitator Definition
The mud agitator is an important equipment in the drilling fluid solids control system, mainly used for stirring, mixing, and suspending drilling fluids, preventing solid particle sedimentation, maintaining uniform and stable drilling fluid performance, and ensuring smooth drilling operations.
JKZ mud agitators use high-quality materials and advanced design, featuring good mixing effect, stable operation, and easy maintenance. They are widely used in petroleum drilling, shale gas development, coalbed methane extraction, and other fields.
Technical Specifications
| Model | JKZJQB3 | JKZJQB5.5 | JKZJQB7.5 | JKZJQB11 | JKZJQB15 | JKZJQB18.5 |
|---|---|---|---|---|---|---|
| Reducer | Worm Gear/Helical Gear | Worm Gear/Helical Gear | Worm Gear/Helical Gear | Worm Gear/Helical Gear | Worm Gear/Helical Gear | Worm Gear/Helical Gear |
| Motor Power | 3kw | 5.5kw | 7.5kw | 11kw | 15kw | 18.5kw |
| Speed (r/min) | 60/72 | 60/72 | 60/72 | 60/72 | 60/72 | 60/72 |
| Transmission Ratio (Adjustable) | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 |
| Impeller Diameter | 500 | 700/600 | 750/700 | 850/800 | 1000/950 | 1100/1050 |
| Explosion-proof Standard | ExdIIBT4/IECEX/ATEX | |||||
| Weight (KG) Helical Gear | 105 | 167 | 180 | 270 | 295/376 | 359/459 |
