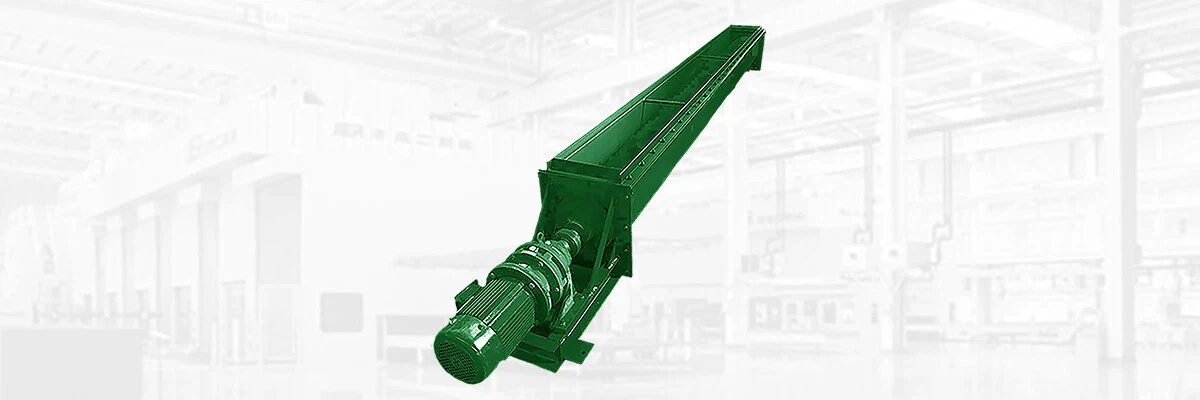

Screw Conveyor
Efficient and Reliable Material Handling Solution
A screw conveyor is a continuous conveying device that uses rotating helical blades to move materials along a fixed casing. It features simple structure, good sealing performance, and easy operation, widely used for horizontal, inclined, or vertical transportation of various bulk materials.
JKZ screw conveyors utilize high-strength materials and precision processing technology, capable of stably conveying various solid materials, making them important conveying equipment in modern petroleum drilling operations.
Main Technical Parameters of Screw Conveyor
| Model | Screw Diameter (mm) | Length (mm) | Conveying Capacity (T/h) | Motor Power (kw) | Screw Rotation Speed (r/min) |
|---|---|---|---|---|---|
| JKZSC10-6 | 250 | 6000 | 16 | 4 | 40-70 |
| JKZSC10-8 | 250 | 8000 | 16 | 5.5 | 40-70 |
| JKZSC12-8 | 300 | 8000 | 20 | 7.5 | 40-70 |
| JKZSC12-10 | 300 | 10000 | 25 | 7.5 | 40-70 |
| JKZSC14-10 | 350 | 10000 | 30 | 11 | 40-70 |
| JKZSC14-12 | 350 | 12000 | 30 | 11 | 40-70 |
| JKZSC16-12 | 400 | 12000 | 40 | 11 | 40-71 |
| JKZSC16-14 | 400 | 14000 | 40 | 15 | 40-71 |
Main Functions of Screw Conveyor
Continuous Conveying
Achieves continuous and stable material transportation, improving production efficiency.
Good Sealing Performance
Fully enclosed structure prevents dust leakage, protecting the working environment.
Multiple Loading/Unloading Points
Allows loading and unloading at multiple positions, offering flexible operation.
Strong Adaptability
Suitable for horizontal, inclined, or vertical conveying, meeting various working condition requirements.
Compact Structure
Small footprint, flexible layout, adaptable to various site conditions.
Easy Maintenance
Simple structure, minimal maintenance workload, reducing operating costs.
JKZ screw conveyors adopt modular design, easy maintenance, stable operation, and have been widely used in petroleum drilling, chemical industry, building materials, grain and other fields, providing customers with reliable material conveying solutions.
