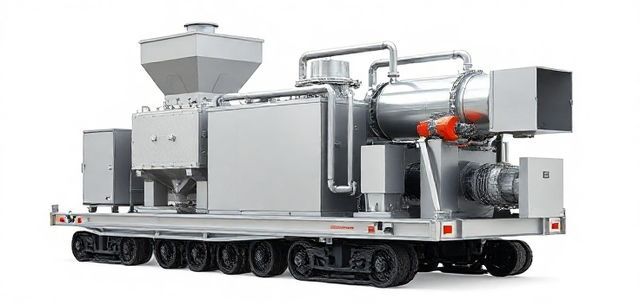

Skid-Mounted Solids Control Systems

Compact & Efficient Solids Control

JKZ skid-mounted solids control systems offer a complete, integrated solution for drilling fluid management in a compact, transportable package. These systems are ideal for operations where space is limited or mobility is required.

Our skid systems incorporate all essential solids control equipment - shale shakers, desanders, desilters, centrifuges, and mud cleaners - configured for optimal performance and efficiency.

Designed for quick deployment and easy operation, JKZ skid systems reduce setup time and labor costs while delivering superior solids removal performance.

Key Features of Our Skid Systems

Engineered for performance, mobility, and reliability

Easy Transport

Compact design allows for easy transportation to remote locations and quick setup on site.

Integrated Design

All components are pre-assembled and tested for optimal performance and compatibility.

Efficient Operation

Optimized layout minimizes fluid transfer distances and reduces power consumption.

Easy Maintenance

Accessible components and logical layout simplify routine maintenance and repairs.

Space Saving

Compact footprint ideal for offshore platforms and locations with limited space.

Modular Design

Customizable configurations to meet specific drilling requirements and conditions.

System Components & Configurations

Our skid systems can be configured with various combinations of equipment

2-Stage System

Linear Motion Shale Shaker
Desander Unit
Mud Tank with Agitators
Centrifugal Pumps
Control Panel

Compact System

Double Deck Shale Shaker
Small Footprint Design
Integrated Mud Tank
Simple Controls
Ideal for Workover Rigs

Economy System

Single Shale Shaker Unit
Basic Desander Configuration
Cost-Effective Solution
Easy Operation
Low Maintenance Design

3-Stage System

High-G Shale Shaker
Desander & Desilter Cones
Centrifuge Unit
Mud Mixing System
Advanced Control Panel

HDD System

Designed for HDD Applications
Bentonite Recovery System
Compact & Mobile Design
Easy Setup & Operation
Environmental Compliance

Modular System

Expandable Design
Multiple Configuration Options
Upgrade Capabilities
Flexible Layout
Future-Proof Design

4-Stage System

Dual Shale Shakers
Desander & Desilter Units
High-Speed Centrifuge
Vacuum Degasser
Automated Control System

Offshore System

Marine-Grade Construction
Explosion-Proof Components
Space-Optimized Design
High-Capacity Processing
Rugged & Durable

Automated System

PLC Control System
Remote Monitoring Capability
Automated Process Control
Data Logging & Reporting
Predictive Maintenance Features

Technical Specifications

Standard specifications for our skid-mounted systems

Model	Processing Capacity	Dimensions (L×W×H)	Power Requirements	Weight
JKZ-SKID-200	200 GPM	5.5m × 2.2m × 2.8m	30 kW	4,500 kg
JKZ-SKID-500	500 GPM	7.2m × 2.5m × 3.0m	55 kW	6,800 kg
JKZ-SKID-800	800 GPM	9.0m × 2.8m × 3.2m	85 kW	9,200 kg
JKZ-SKID-1200	1200 GPM	11.5m × 3.0m × 3.5m	120 kW	12,500 kg

Applications

Our skid-mounted systems are ideal for various drilling applications

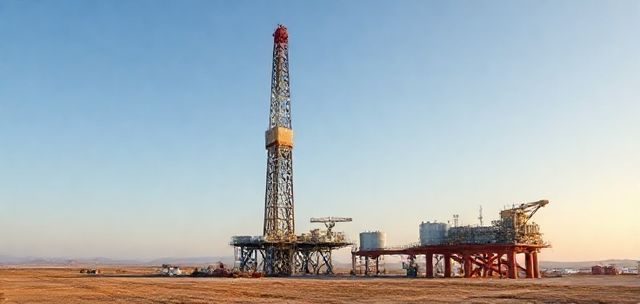

Oilfield Drilling

Compact solutions for land-based oil and gas drilling operations with limited space.

Horizontal Directional Drilling

Mobile systems for HDD projects in urban environments and infrastructure development.

Workover & Servicing Rigs

Compact systems designed for workover operations and well servicing applications.

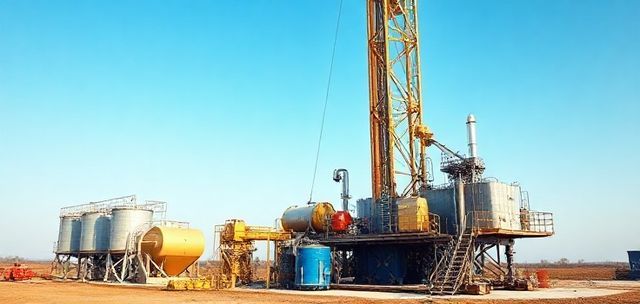

Exploration Drilling

Transportable systems for remote exploration sites and mineral drilling operations.
