Professional Mud Cleaner Equipment

High-efficiency mud cleaning systems that combine desander and desilter functions for superior solids control in drilling operations

Request a Quote View Specifications

What is a Mud Cleaner?

Combining desander and desilter technology for comprehensive solids removal

Efficient Drilling Fluid Purification

A mud cleaner is an essential piece of solids control equipment that combines a desander, desilter, and fine mesh shale shaker to remove drilled solids from drilling fluid. This integrated system effectively separates particles ranging from 15 to 100 microns, making it an efficient solution for maintaining optimal drilling fluid properties.

JKZ mud cleaners are designed to handle high flow rates and demanding drilling conditions, providing reliable performance in various applications from oilfield drilling to HDD operations. Our equipment helps reduce drilling fluid costs, minimize waste disposal volumes, and improve overall drilling efficiency.

Dual Functionality

Combines desander and desilter in a single unit for comprehensive solids removal

Fine Screening

Integrated shale shaker with fine mesh screens for superior filtration

Fluid Recovery

Maximizes drilling fluid recovery, reducing overall consumption and costs

Compact Design

Space-saving configuration ideal for limited rig space applications

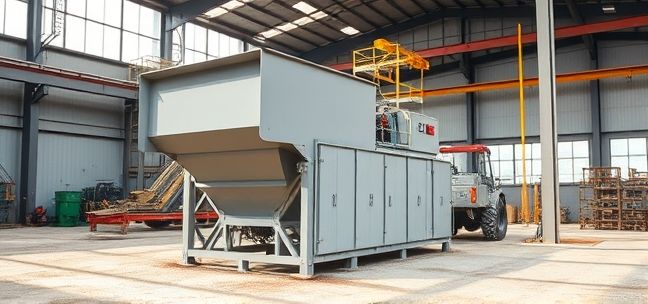

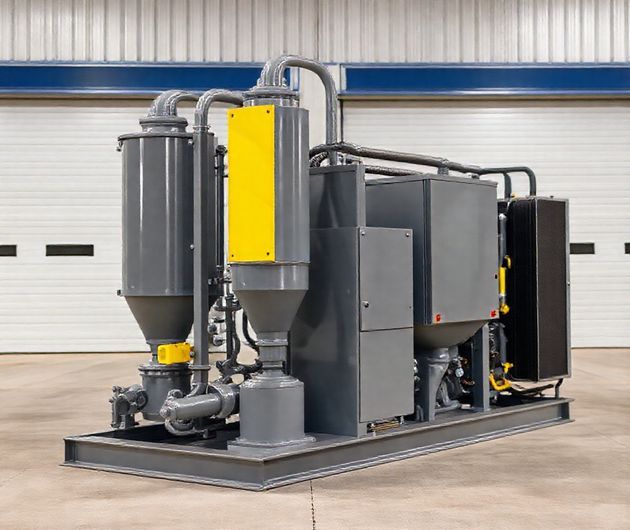

Mud Cleaner Equipment

Mud Cleaner Specifications

Technical details of our high-performance mud cleaning systems

Model JKZ-MC-100 JKZ-MC-200 JKZ-MC-300 JKZ-MC-400
Processing Capacity (GPM) 500-800 800-1200 1200-1600 1600-2000
Hydrocyclone Size 5″ Desander + 4″ Desilter 5″ Desander + 4″ Desilter 6″ Desander + 5″ Desilter 6″ Desander + 5″ Desilter
Number of Cones 8 + 12 12 + 16 16 + 20 20 + 24
Screen Area (m²) 2.5 3.5 4.5 5.5
Screen Mesh Size 100-200 100-200 100-200 100-200
Power Requirements 15 HP 20 HP 25 HP 30 HP
Dimensions (L×W×H, mm) 3200×1800×2100 3800×2000×2200 4200×2200×2300 4800×2400×2400
Weight (kg) 2200 2800 3500 4200

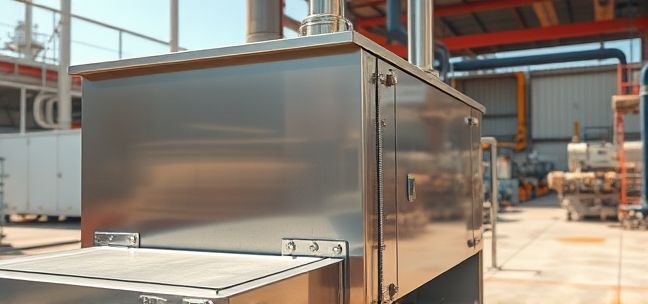

JKZ-MC-100

Standard Model

Ideal for small to medium drilling operations with moderate flow rates and space constraints.

  • 500-800 GPM capacity
  • 8+12 cone configuration
  • 2.5 m² screen area
  • Compact footprint
  • Easy maintenance
Inquire Now

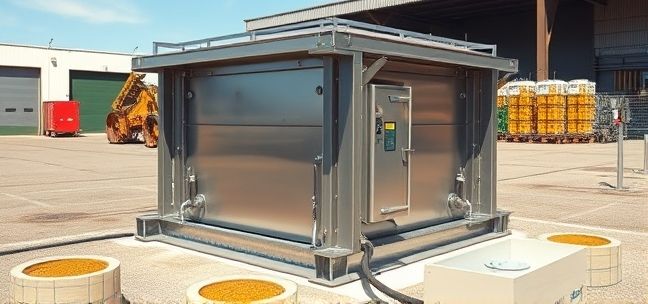

JKZ-MC-200

Enhanced Model

Designed for medium-scale operations requiring higher processing capacity and efficiency.

  • 800-1200 GPM capacity
  • 12+16 cone configuration
  • 3.5 m² screen area
  • Improved separation efficiency
  • Robust construction
Inquire Now

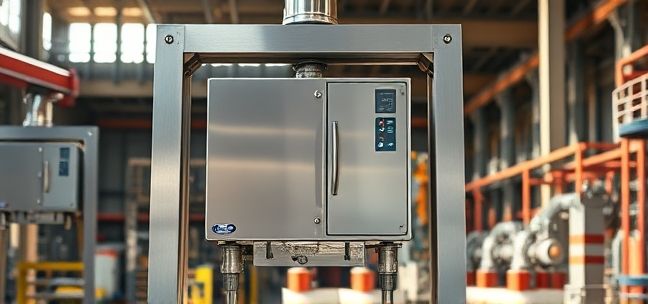

JKZ-MC-300

Professional Model

High-capacity model for demanding drilling operations with large fluid volumes.

  • 1200-1600 GPM capacity
  • 16+20 cone configuration
  • 4.5 m² screen area
  • Advanced vibration system
  • Heavy-duty components
Inquire Now

How Mud Cleaners Work

The integrated process of efficient solids removal in drilling fluid

Multi-Stage Separation Process

JKZ mud cleaners utilize a sophisticated multi-stage separation process to remove solids from drilling fluid. The system combines hydrocyclone technology with fine mesh screening to achieve superior solids control performance.

Drilling fluid first enters the desander section where larger particles (40-100 microns) are removed through centrifugal force. The partially cleaned fluid then progresses to the desilter section where finer particles (15-40 microns) are separated. Finally, the fluid passes over a fine mesh shale shaker screen that captures any remaining ultra-fine solids.

This integrated approach ensures maximum solids removal efficiency while preserving valuable drilling fluid components for reuse.

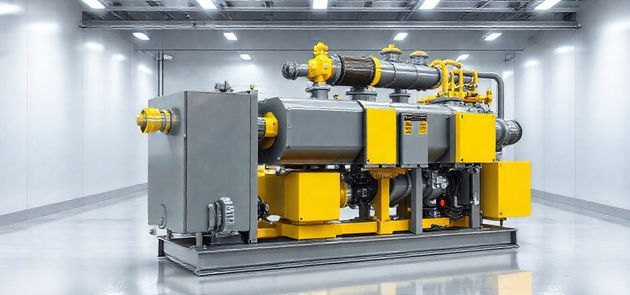

Mud Cleaner Working Principle
1

Inlet Distribution

Drilling fluid enters the mud cleaner and is evenly distributed to the hydrocyclone cones for initial processing.

2

Desander Stage

Larger particles (40-100 microns) are separated using centrifugal force in the desander cones.

3

Desilter Stage

Finer particles (15-40 microns) are removed in the desilter cones through high-speed rotation.

4

Final Screening

The fluid passes over fine mesh screens to remove any remaining ultra-fine solids before returning to the active system.

Mud Cleaner Applications

Versatile solutions for various drilling and fluid management applications

Oil & Gas Drilling Applications

JKZ mud cleaners are extensively used in oil and gas drilling operations to maintain optimal drilling fluid properties and remove drilled solids. They are particularly effective in weighted mud systems where traditional shale shakers may experience screen blinding.

Our mud cleaners help reduce drilling fluid costs by maximizing fluid recovery, minimize waste disposal volumes through efficient solids removal, and protect downstream equipment from abrasive particles.

Key benefits for oil and gas applications include improved rate of penetration, reduced torque and drag, better wellbore stability, and overall cost savings through efficient solids control.

View Oilfield Case Studies

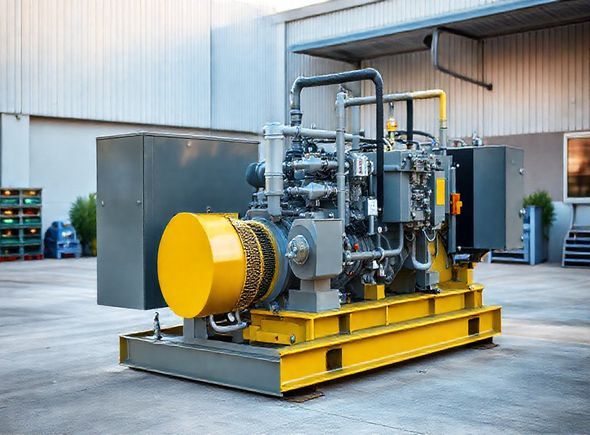

Mud Cleaner in Oilfield Drilling

Horizontal Directional Drilling

In HDD operations, mud cleaners play a critical role in maintaining drilling fluid properties and efficiently removing drilled solids. JKZ mud cleaners are designed with compact footprints ideal for space-constrained HDD sites.

Our equipment helps HDD contractors reduce fluid consumption, minimize environmental impact through effective waste management, and improve overall drilling efficiency by maintaining optimal fluid viscosity and density.

Benefits for HDD applications include reduced risk of frac-outs, improved borehole stability, extended tool life, and compliance with environmental regulations regarding drilling waste management.

View HDD Case Studies

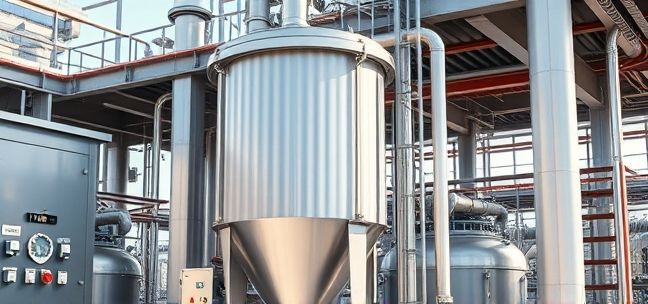

Mud Cleaner in HDD Operations

Mining and Mineral Processing

JKZ mud cleaners are adapted for use in mining and mineral processing applications where efficient solids-liquid separation is required. They are particularly useful in mineral exploration drilling and processing operations.

Our equipment helps mining operations recover valuable process water, reduce tailings volumes, and meet environmental compliance requirements for water management and waste disposal.

Key advantages include reduced water consumption, lower disposal costs, improved process efficiency, and better environmental performance through effective solids control and water recovery.

View Mining Applications

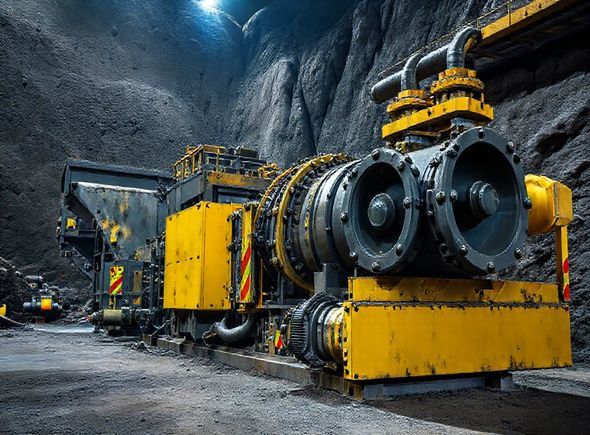

Mud Cleaner in Mining Operations

Piling and Foundation Drilling

In piling and foundation drilling operations, JKZ mud cleaners help maintain the properties of drilling fluids used for borehole stability and cuttings removal. They are particularly important in large-diameter bored piling and diaphragm wall construction.

Our equipment helps construction projects reduce bentonite and polymer consumption, improve borehole stability, and minimize environmental impact through efficient solids removal and fluid recovery.

Benefits include improved pile integrity, reduced material costs, lower disposal costs, and compliance with environmental regulations regarding drilling waste management on construction sites.

View Construction Case Studies

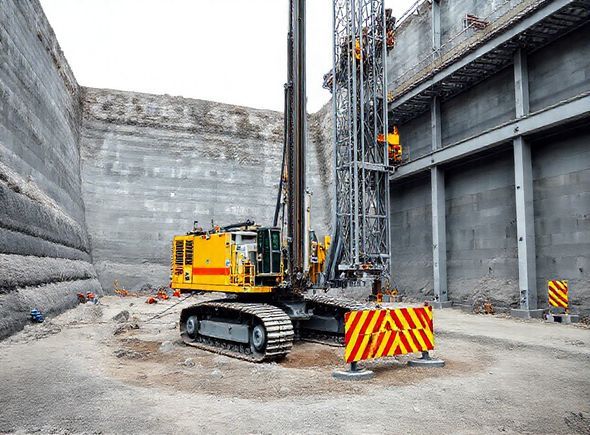

Mud Cleaner in Piling Operations
